Feature
The new R9 is equipped with the most cost-effective 40W, 30W full-color power file configuration. It can meet the needs of many occasions, and it can also have a very practical IP65 protection level, perfect for water shows, buildings, mountains, northern lights and even outdoor stage performances, etc.The laser adopts the intelligent temperature control system independently developed by our company to ensure the normal use under the environment of -20~40°C.
Technical Parameter
Feature
The new R9 is equipped with the most cost-effective 40W, 30W full-color power file configuration. It can meet the needs of many occasions, and it can also have a very practical IP65 protection level, perfect for water shows, buildings, mountains, northern lights and even outdoor stage performances, etc.The laser adopts the intelligent temperature control system independently developed by our company to ensure the normal use under the environment of -20~40°C.|
◎R9-RGB40：R635-12W/G525-13W/B455-18W |
◎R9- RGB30：R635-10W/G525-10W/B4 55-12W |
| ◎Rated voltage：AC100~240V 50/60Hz |
◎Laser color: RGB 100% color mixing |
| ◎Power consumption：≤800W | ◎Scan system：40K high speed scanner，scan angle MAX±30°, input signal ±5V； |
| ◎Modulation：analog | ◎Beam diameter：9*6.5mm, divergence 1.0mrad |
|
◎Integrated hardware：original Pangolin FB4 |
◎Control mode：auto、DMX512、Artnet、Ethernet |
| ◎IP rate:IP65 | ◎Demonstration effect: built-in more than 2000 patterns. |

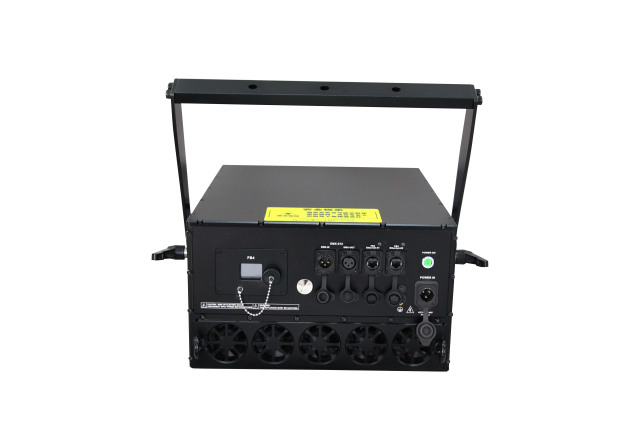

| ◎Interface：waterproof power in, waterproof dmx in/out, waterproof ethernet in/ out | ◎Working environment: The temperature is at -20~40℃. A dry and dust-free environment can reduce laser power attenuation and extend the life of the laser. |
| ◎Protection level: IP65 |
◎Suitable venues: concerts, stadiums, advertising promotions, electronic music festivals, live performances, etc. |
| ◎Packaging dimensions of flight case: 75*62*45cm | ◎Net/Gross weight: 34/56kg |
 |
 |
|
Model |
Item name |
Laser power |
|
R9-RGB40 |
40W RGB outdoor world tour show laser |
R635-12W/G525-13W/B455-18W |
|
R9-RGB30 |
30W RGB outdoor world tour show laser |
R635-10W/G525-10W/B455-12W |
